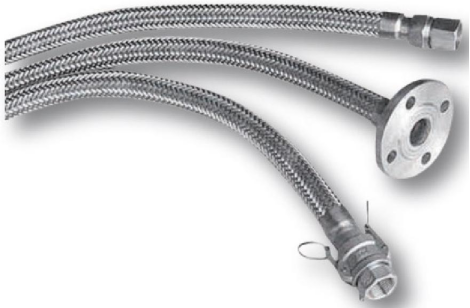

Flexible Hose With Specification Fittings

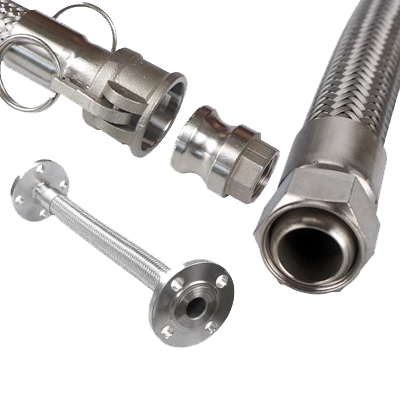

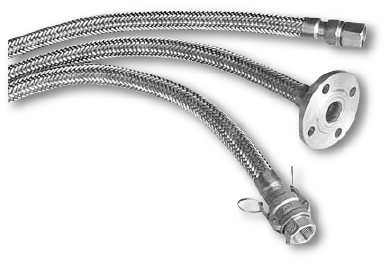

All kinds of special connectors are used at both ends of hose,such as
movable inner teeth,quick connectors,KF flanges,etc.

FLEXIBLE HOSE WITH SPECIFICATION FITTINGS

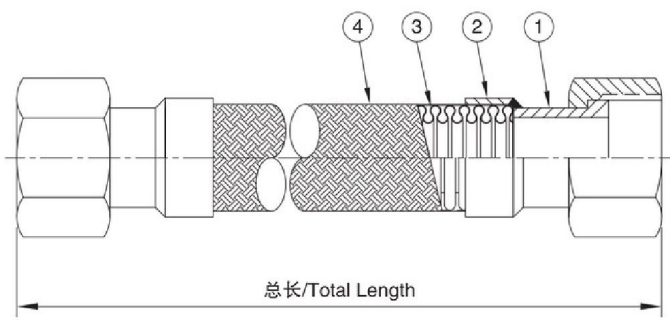

● Construction

ltem	Parts	Std.Material	Option Material
1.	End Fittings	SUS-304	SUS-316L/SS-400
2.	Collar Ring	SUS-304
3.	Bellows	SUS-304	SUS-316L/SUS-321
4.	Wire Braids	SUS-304

● Helical Corrugated Hose

N.D.		Bellows Specication		Braids Spec					Weight		Working Pressure
		I.D. O.D.	Thick	Wire φ	Thread	Bunch	Min.Bend Static	Radius Flexing	Bellows	Braided
mm	inch	mm mm	mm	mm	no./bunch	no.	mm	mm	kg/m	kg/m	kg/cm²
8	1/4	7.8 11.0	0.20	0.3	5	24	30	85	0.07	0.17	108.0
10	3/8	10.5 15.2	0.20	0.3	7	24	35	100	0.13	0.27	87.0
15	1/2	13.4 18.5	0.20	0.3	8	24	40	115	0.17	0.32	60.0
20	3/4	19.8 25.6	0.20	0.3	8	36	50	130	0.24	0.45	41.0
25	1	25.5 32.5	0.25	0.3	9	36	65	150	0.32	0.58	35.7
32	1/4	31.3 41.7	0.25	0.3	12	36	75	170	0.41	0.82	31.6
40	112	40.4 55.0	0.35	0.4	10	48	95	225	0.61	1.16	41.8
50	2	51.5 68.2	0.40	0.4	11	48	115	255	0.81	1.49	28.9

● Annular Corrugated Hose

N.D.		Belows Specication	Braids Spec.					Weight		Working Pressure
		I.D. O.D. Thick	Wire φ	Thread	Bunch	Min.Ben Static	d Radius Flexing	Bellows	Braided
mm	inch	mm mm mm	mm	no./bunch	no.	mm	mm	kg/m	kg/m	kg/cm²
20	3/4	20.0 26.6 0.22	0.3	8	36	85	130	0.38	0.64	41.0
25	1	25.5 33.0 0.25	0.3	9	36	100	155	0.51	0.92	35.7
32	11/4	31.3 41.7 0.25	0.3	12	36	115	170	0.63	1.18	31.6
40	11/2	40.4 55.0 0.35	0.4	10	48	150	230	1.03	1.72	41.8
50	2	51.5 68.2 0.4	0.4	11	48	165	240	1.32	2.07	28.9
65	21/2	64.5 84.1 0.4	0.4	14	48	195	280	1.65	2.57	24.4
80	3	77.0 97.9 0.4	0.4	10	72	220	305	1.97	2.99	18.8
100	4	102.0 123.7 0.4	0.4	16	72	275	380	2.61	4.21	18.0
125	5	127.0 152.1 0.5	0.5	11	96	375	530	4.05	6.18	17.0
150	6	152.5 178.6 0.5	0.5	15	96	435	610	4.87	7.42	16.5
200	8	200.0 230.9 0.6	0.5	18	96	570	810	7.65	12.25	11.6
250	10	250.0 280.9 0.6	0.6	16	112	660	915	9.54	15.11	11.4
300	12	298.0 334.1 0.8	0.6	16	144	945	1390	15.17	21.85	10.4
350	14	334.0 372.1 0.8	0.6	19	148	1015	1470	17.01	24.25	10.2

# The working pressure tabulated above is the based on the room temperature(about 25℃)and minimum burst pressure is 4 times the working pressure.

# The size,working pressure,total length,and movement tabulated above is the standard specification.We can also deliver products against your requests.
