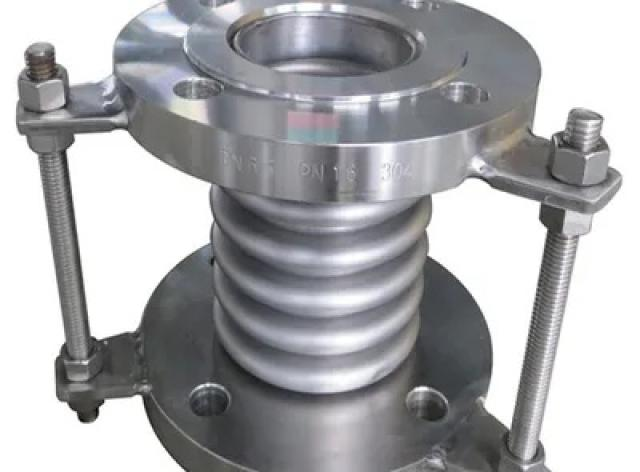

Stainless steel SS304 Bellows Expansion Joints Flange type

Stainless steel SS304 Bellows Expansion Joints Flange type

To facilitate installation and replacement, expansion joints of various sizes typically utilize flanges of various standards and shapes. We can provide flanges compliant with ANSI, DIN, JIS, and GB standards, suitable for various pressure ratings, pressure ranges from 0-5.0 MPa, and diameters from DN15 to DN8000 mm, made of various materials, upon request. Custom flange shapes are also available.

Specifications:

• Model: DN15-DN8000,
• Pressure: 0.1Mpa-4.0Mpa
• Connection: 1, Flange-connecting 2, Pipe-connecting
• Axial Compensation: 18mm-400mm
• Standard:GB/T12777-2008
• Working Temperature:-196ºC~450ºC

Application:

Our products are widely used in industrial equipment manufacturing and engineering pipeline connections in aerospace, marine, petrochemical, oil refining, power plants, temperature control, information industry, heating, and other fields. They effectively ensure the safety of pressure pipelines transporting toxic, flammable, and explosive media, and prevent leakage from causing environmental pollution to the ocean, atmosphere, and plants. Our products are characterized by high temperature resistance, high pressure resistance, corrosion resistance, fatigue resistance, and long-term use.
