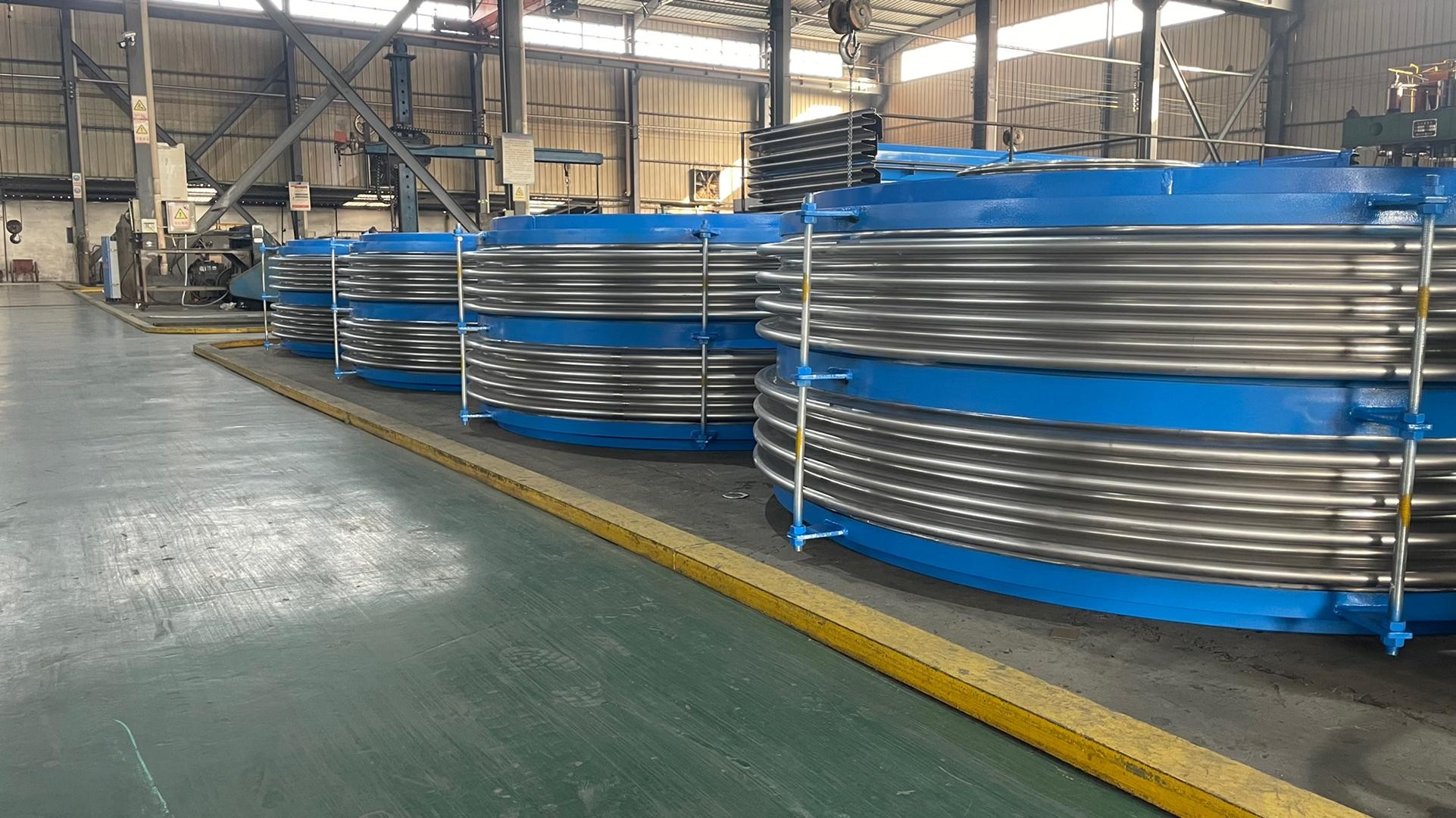

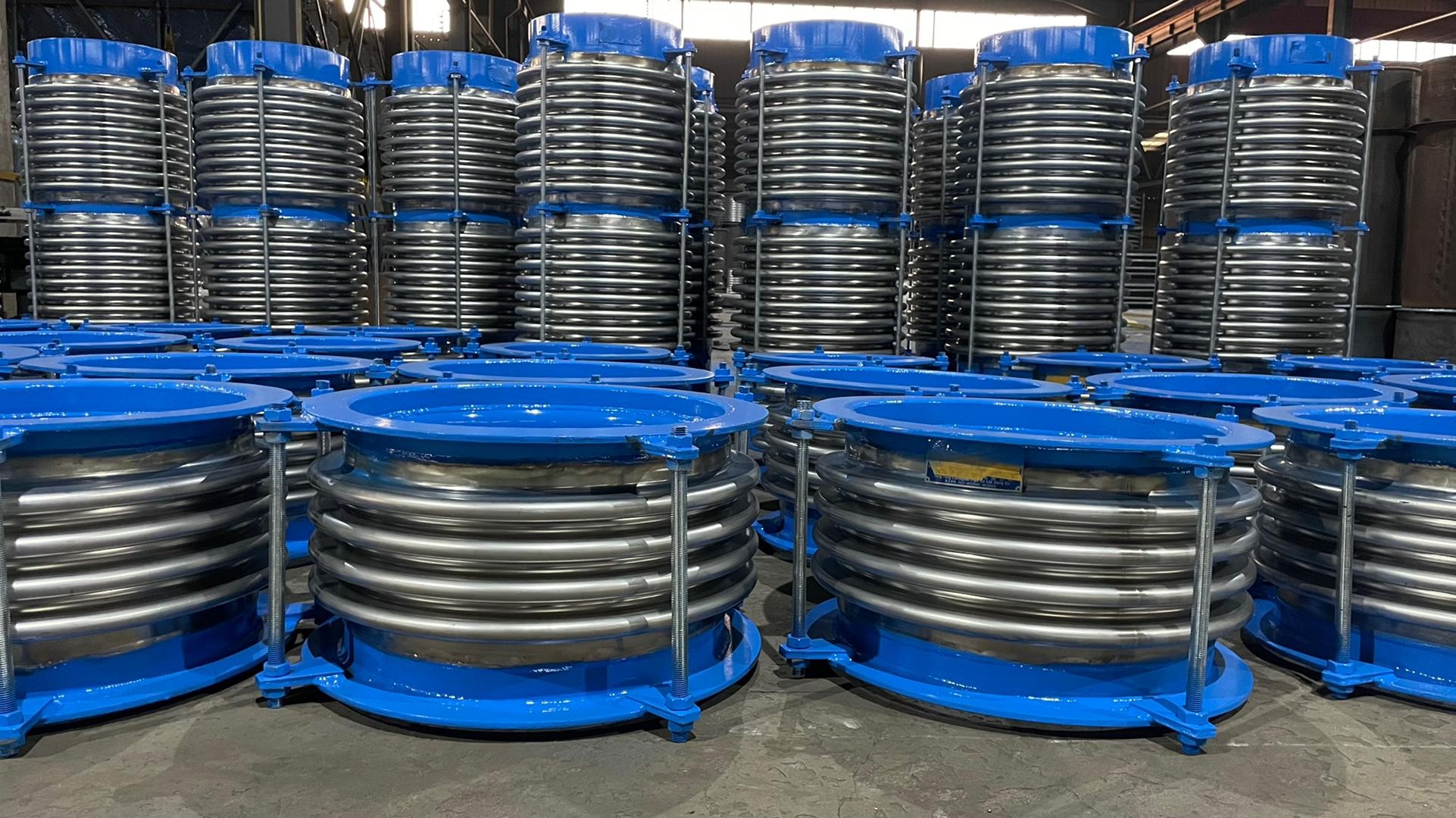

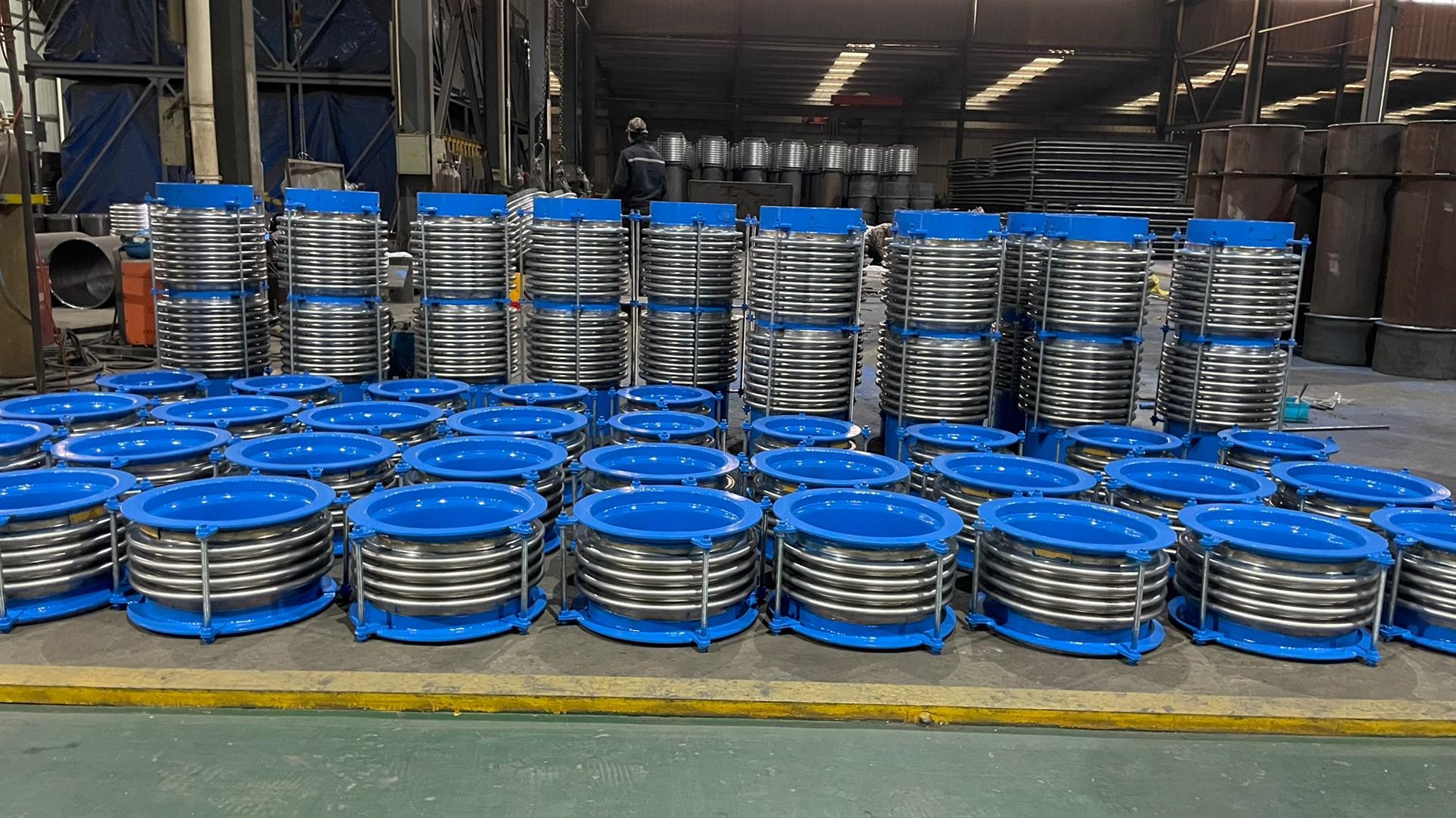

MVR Steam Compressor Expansion Joint – Stainless Steel Bellows Compensator

Product Overview

This expansion joint is specially designed for MVR steam compressor inlet and outlet pipelines. Made of stainless steel bellows with carbon steel flanges, it absorbs thermal expansion, equipment vibration, and installation deviation, effectively reducing pipe thrust and moment on the compressor flange to ensure safe and stable MVR system operation.

Key Features

●Stainless steel bellows, high temperature & corrosion resistant

●Self-balanced tie rod design, no thrust transferred to compressor

●Built-in guide sleeve, prevents high-speed steam erosion

●Multi-layer bellows structure, long fatigue life

●Optional insulation layer to reduce heat loss

Technical Specifications

Applications

• MVR steam compressor inlet & outlet

• TVR thermal compression system

• Evaporation & concentration units

• Steam pipeline thermal compensation

• Chemical, pharmaceutical, food industry
