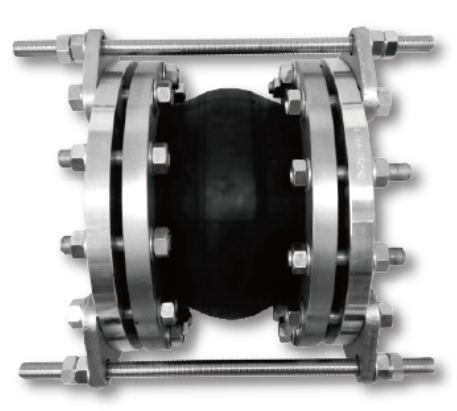

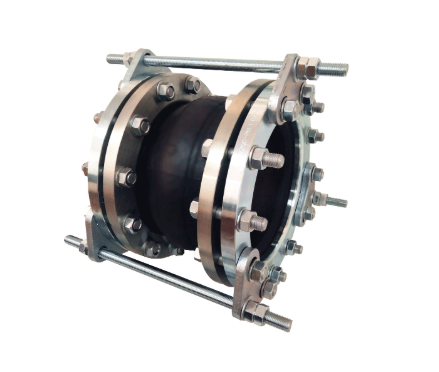

Single Sphere Rubber Connector
Size:DN25~DN600
Material: EPDM/Natural Rubber/Neoprene Rubber
Interface: Stainless steel/carbon steel flange
Working pressure: 10 / 16 kg/cm2
Operating temperature -20℃~80℃
Single-sphere rubber expansion joints (also known as rubber joints or vibration isolators) are primarily used to absorb pipeline displacement, reduce vibration, and decrease noise. They effectively mitigate axial, lateral, and angular displacements caused by temperature changes, water hammer, or equipment operation, preventing pipeline rupture.
Product Construction
| ltem | Parts | Std.Material | Option Material | ||||||||
| 1. | Steel Ping | SUS-304 | 一 | ||||||||
| 2. | Flange | SS-400 | SUS-304/SUS-316 | ||||||||
| 3. | Reinforcing Layer | Nylon | 一 | ||||||||
| 4. | External Cover | EPDM | # | ||||||||
| 5. | Internal Tube | EPDM | # | ||||||||
| 6. | LUG | SS-400 | SUS-304 | ||||||||
| 7. | Control Rod | S-15C | SUS-304 | ||||||||
#NR/CR/NBR/SBR...etc
Flange Standard:JIS,GB,Other standard flanges are available,like ANSI,DIN,BS..etc.
Our products are designed and manufactured according to FSA.The max.cycles life of the products exceed 5000 cycles in the condition of
max.movement and max temperature.
Product Specifications:
| Temperature Range:5℃~115℃ | #The pressure rating tabulated below is based on 80℃. | ||||||||||||||||||
N.D. | Overall Length (L) | Used for pipe A | Van Stone O.D. | (Sphere Specification) | Movement | Working pressure | Weight/pc | ||||||||||||
Eff.Area | Spring Rale | Axial Ext | Axial Com | Lateral | Angular | ||||||||||||||
| mm | inch | mm | inch | mm | B(mm) | cm² | kg/mm | △Xe(mm) | △Xc(mm) | △Y/Z(mm) | △θ(degree) | kg/cm² | kg/pc | ||||||
| 25 1 | 1 | 95 | 3.7 | 33.7 | 60 | 18.9 | 3.0 | 4 | 8 | 8 | 15 | 16.0 | 2.7 | ||||||
| 32 11/4 | 1 1/4 | 95 | 3.7 | 42.4 | 68 | 25.8 | 3.8 | 4 | 8 | 8 | 15 | 16.0 | 3.3 | ||||||
| 40 11/2 | 1 1/2 | 95 | 3.7 | 48.3 | 75 | 31.5 | 4.5 | 4 | 8 | 8 | 15 | 16.0 | 3.5 | ||||||
| 50 2 | 2 | 105 | 4.1 | 60.3 | 85 | 43.3 | 6.0 | 5 | 8 | 8 | 15 | 16.0 | 4.2 | ||||||
| 65 | 3 | 115 | 4.5 | 76.1 | 105 | 66.7 | 7.5 | 6 | 12 | 10 | 15 | 16.0 | 5.8 | ||||||
| 80 | 3 | 135 | 5.3 | 88.9 | 119 | 87.5 | 9.0 | 6 | 12 | 10 | 15 | 16.0 | 6.0 | ||||||
| 100 4 | 4 | 150 | 5.9 | 114.3 | 149 | 139.2 | 12.0 | 10 | 18 | 12 | 15 | 16.0 | 7.3 | ||||||
| 125 5 | 5 | 165 | 6.5 | 139.7 | 179 | 203.3 | 14.9 | 10 | 18 | 12 | 15 | 16.0 | 11.0 | ||||||
| 150 6 | 6 | 180 | 7.1 | 168.3 | 211 | 283.8 | 17.9 | 10 | 18 | 12 | 10 | 16.0 | 14.4 | ||||||
| 200 | 8 | 190 | 7.5 | 219.1 | 259 | 451.1 | 19.9 | 14 | 25 | 22 | 10 | 16.0 | 17.4 | ||||||
| 250 | 10 | 230 | 9.1 | 273 | 322 | 689.1 | 25.0 | 14 | 25 | 22 | 10 | 16.0 | 26.7 | ||||||
| 300 | 12 | 245 | 9.7 | 323.9 | 370 | 944.3 | 29.9 | 14 | 25 | 22 | 10 | 16.0 | 29.0 | ||||||
| 350 | 14 | 265 | 10.4 | 355.6 | 413 | 1172.0 | 26.1 | 16 | 25 | 22 | 8 | 8.1 | 38.0 | ||||||
| 400 16 | 16 | 265 | 10.4 | 406.4 | 464 | 1498.5 | 29.9 | 16 | 25 | 22 | 8 | 8.1 | 59.7 | ||||||
| 450 | 18 | 265 | 10.4 | 457 | 524 | 1905.8 | 33.7 | 16 | 25 | 22 | 8 | 8.1 | 64.4 | ||||||
| 500 | 20 | 265 | 10.4 | 508 | 572 | 2324.3 | 37.4 | 16 | 25 | 22 | 5 | 8.1 | 73.2 | ||||||
| 550 | 22 | 265 | 10.4 | 558 | 640 | 2774.9 | 41.2 | 16 | 25 | 22 | 5 | 8.1 | 93.1 | ||||||
| 600 | 24 | 265 | 10.4 | 610 | 690 | 3265.4 | 44.9 | 13 | 19 | 19 | 5 | 8.1 | 104.6 | ||||||
Max.Negative Pressure is 66cm.Hg.Products should not be installed“extended”on vacuum application.
The overall length,size and max,pressure resistance tabulated above are the standard,We can also deliver any length against your request.
Min.burst Pressure:3 times the Max.Pw tabulated above.
Product Application:
Single-sphere rubber expansion joints are widely used in the following scenarios:
1.Water Supply and Drainage and Fire Protection Systems:** Hot and cold water pipes in high-rise buildings, fire protection pipelines, and urban water supply networks, primarily to absorb vibrations caused by pump startup.
2.Heating, Ventilation, and Air Conditioning Systems:** Chillers, cooling towers, and central air conditioning pipelines, mitigating stress caused by thermal expansion and contraction.
3.Industrial and Petrochemical Pipelines:** Chemical plants, pharmaceutical factories, and wastewater treatment plants, resisting corrosion from acids, alkalis, and oils.
4.Power Engineering:** Piping systems in nuclear power plants and power plant boiler equipment.
